VHF Communication Antenna


     Every airplane either small, medium, or larger sized, must have a communication system. One of the major components of the system is the Omni-communication antenna. However, for better aerodynamics around the external body of the aircraft, symmetrical airfoil fins were designed to fit in and reduce the turbulent flow around the fuselage. Below I provided photos of 3D- CAD design to actually printed fins and its instullations.

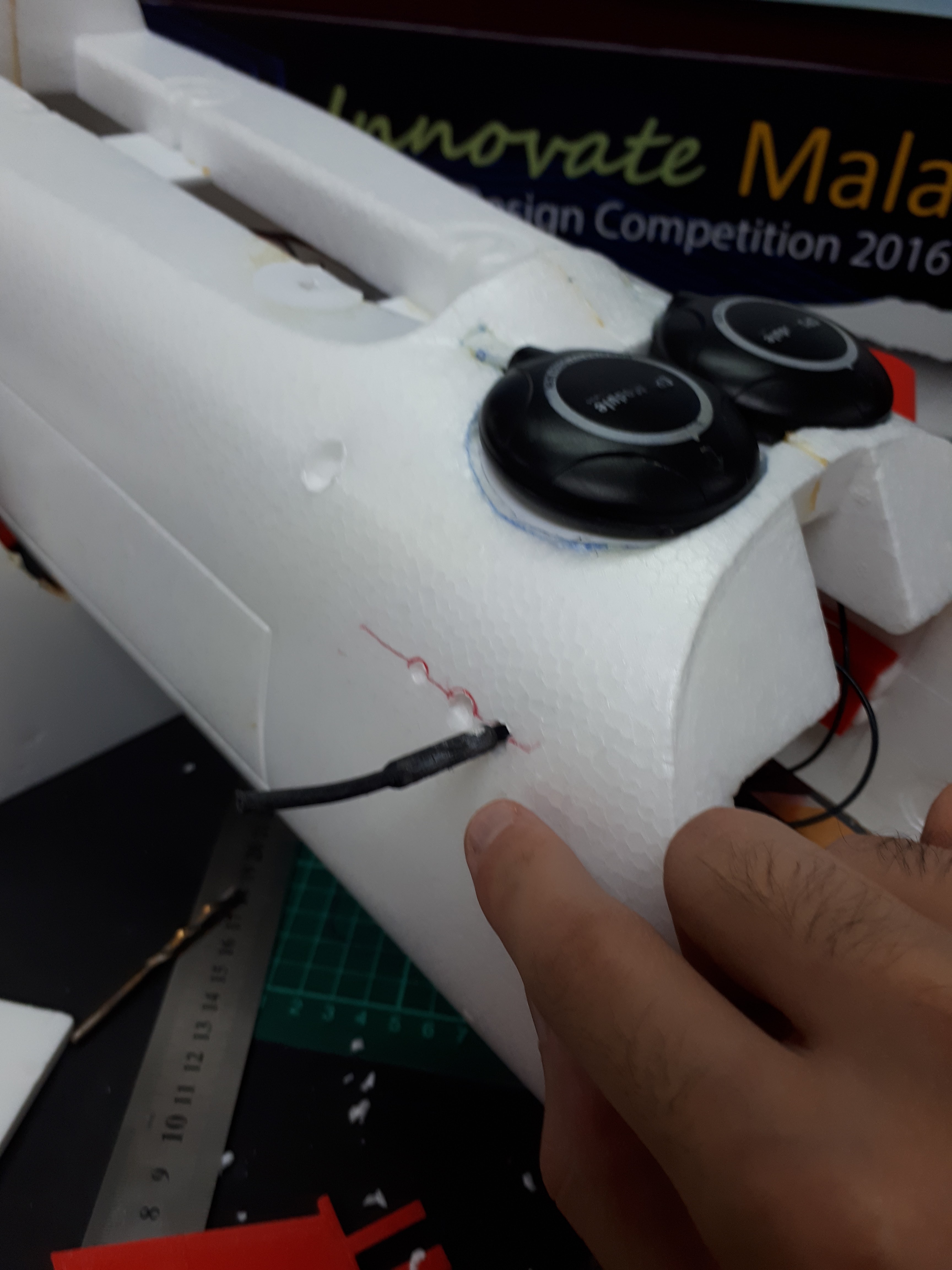

Drilling the right diameters of the holes for Fitting the Fins:






The Outcome view after installing the Antenna's Fins:
